-65%Replacement PCML13TS bearing—
$15.90
$5.56The Story

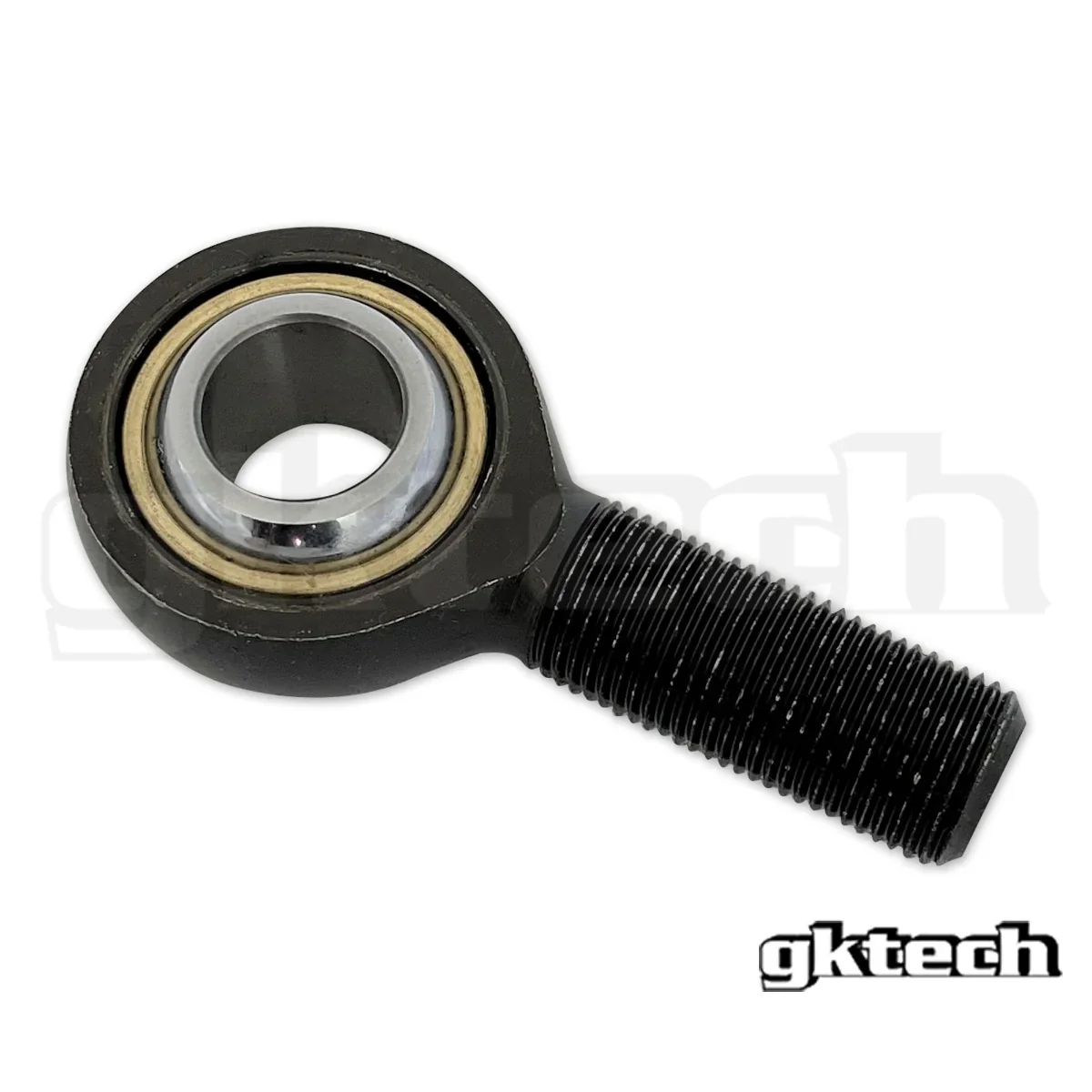

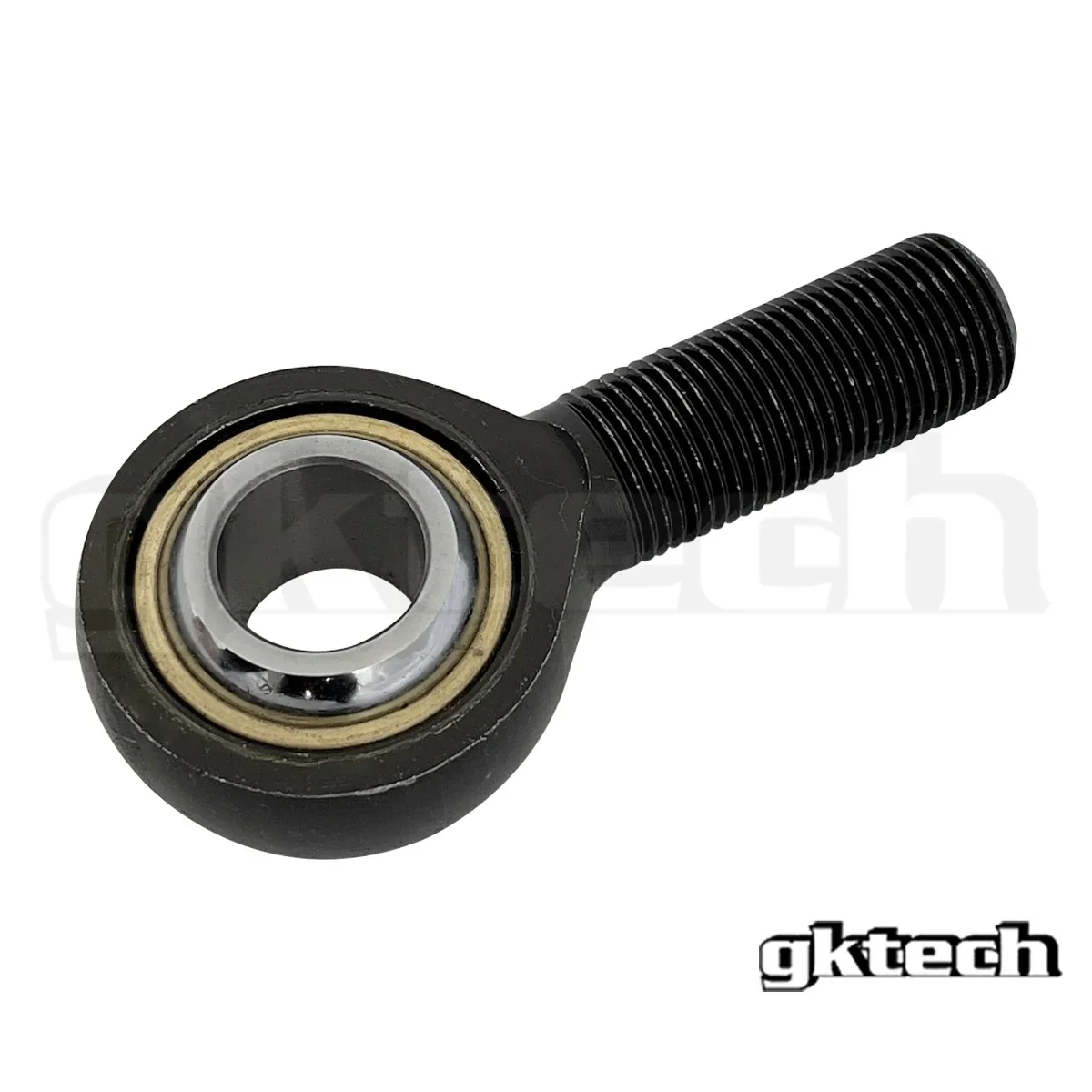

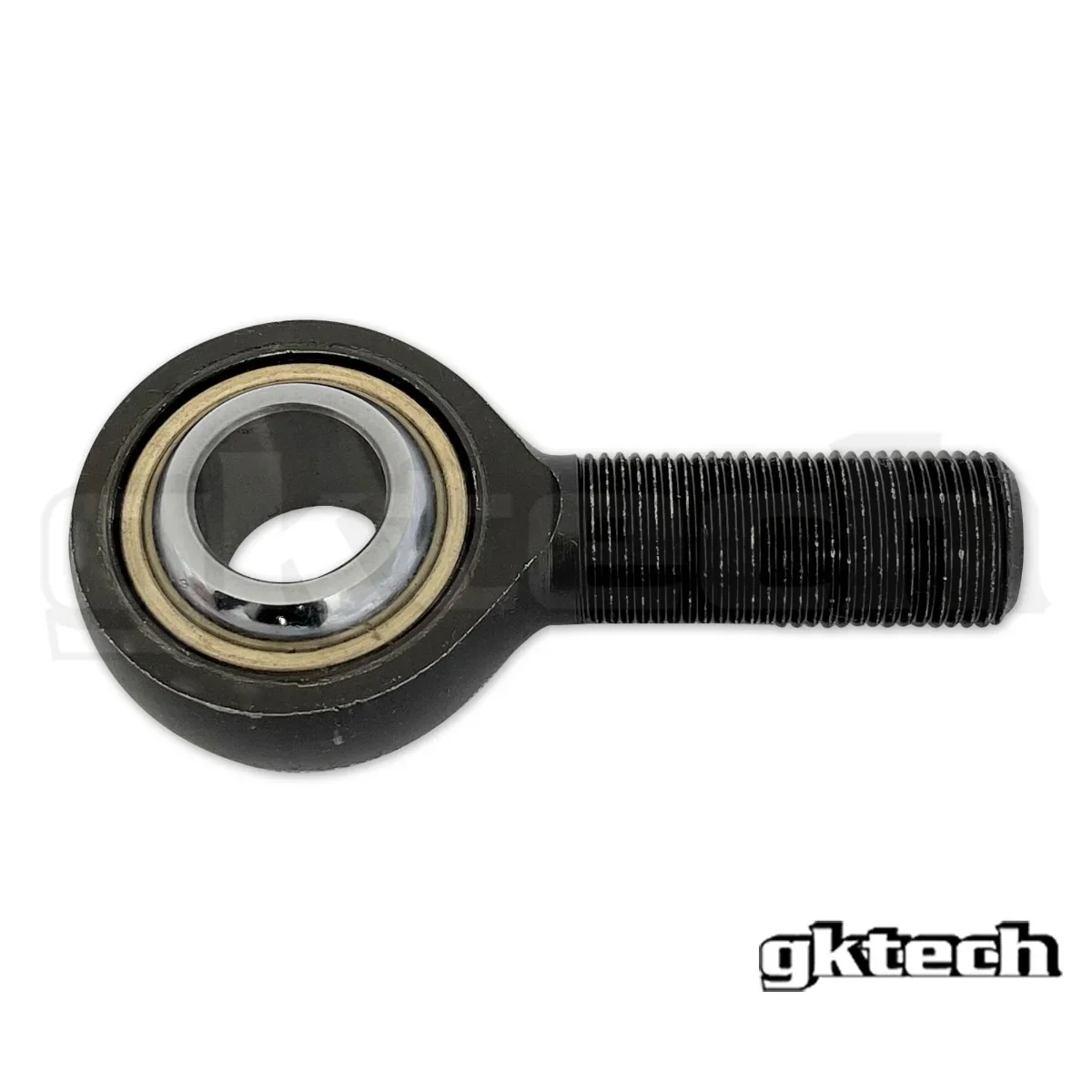

Replacement PCML13TS bearing
Used in the following GKTECH products: 350Z/V35/G35 Grip Front Lower Control Arms (350Z-CROD)
PCML13TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.8000 in | 20.3200 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 0.8750 in | 22.2250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 1.75000 in | 44.4500 mm |
| THREAD SIZE | THREAD SIZE |
| 3/4 - 16 UNF LH | 3/4 - 16 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 1.7500 in | 44.4500 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 24 degrees | 24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 28,025 lbs | 12,712 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Replacement PCML13TS bearing
Used in the following GKTECH products: 350Z/V35/G35 Grip Front Lower Control Arms (350Z-CROD)
PCML13TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.8000 in | 20.3200 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 0.8750 in | 22.2250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 1.75000 in | 44.4500 mm |
| THREAD SIZE | THREAD SIZE |
| 3/4 - 16 UNF LH | 3/4 - 16 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 1.7500 in | 44.4500 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 24 degrees | 24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 28,025 lbs | 12,712 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
