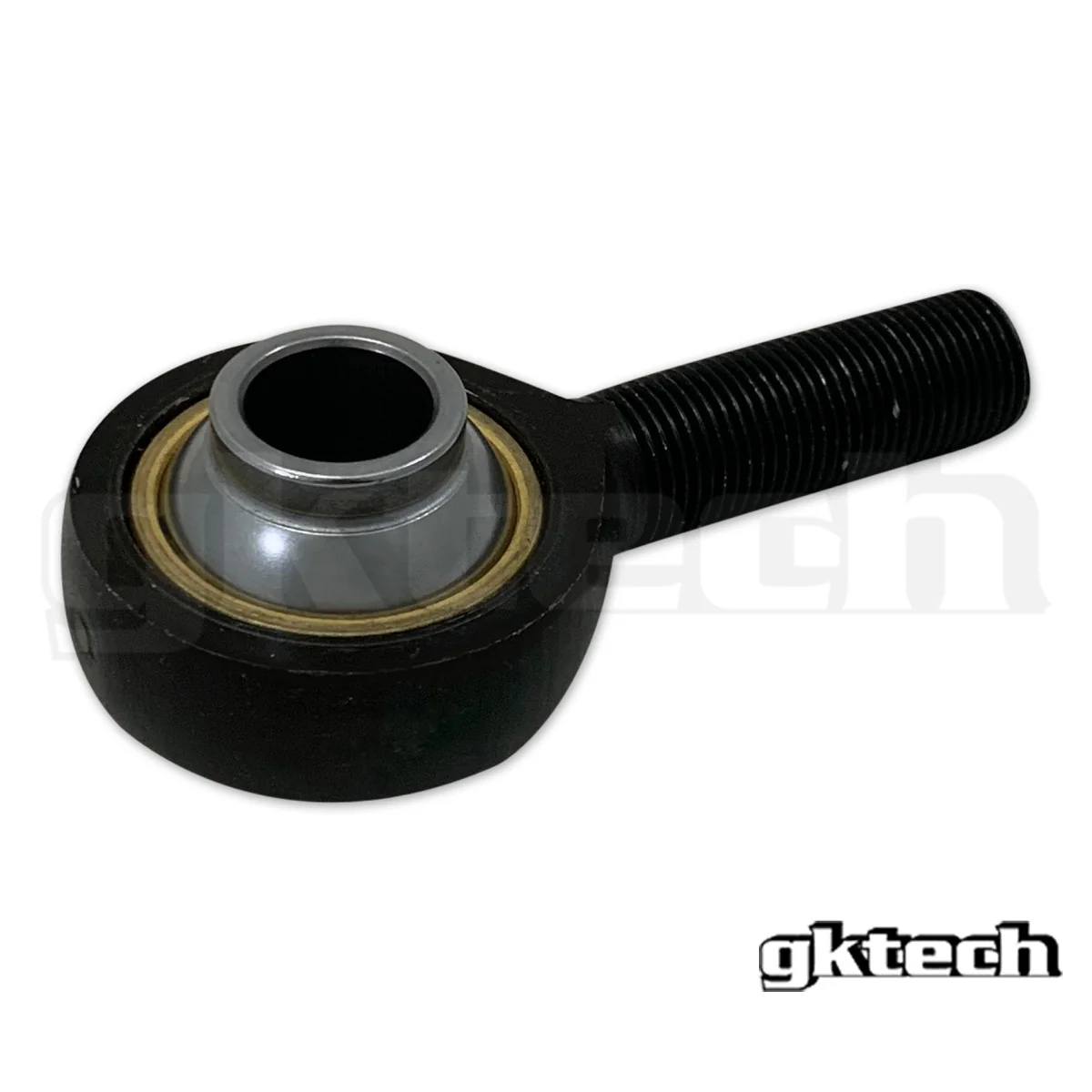

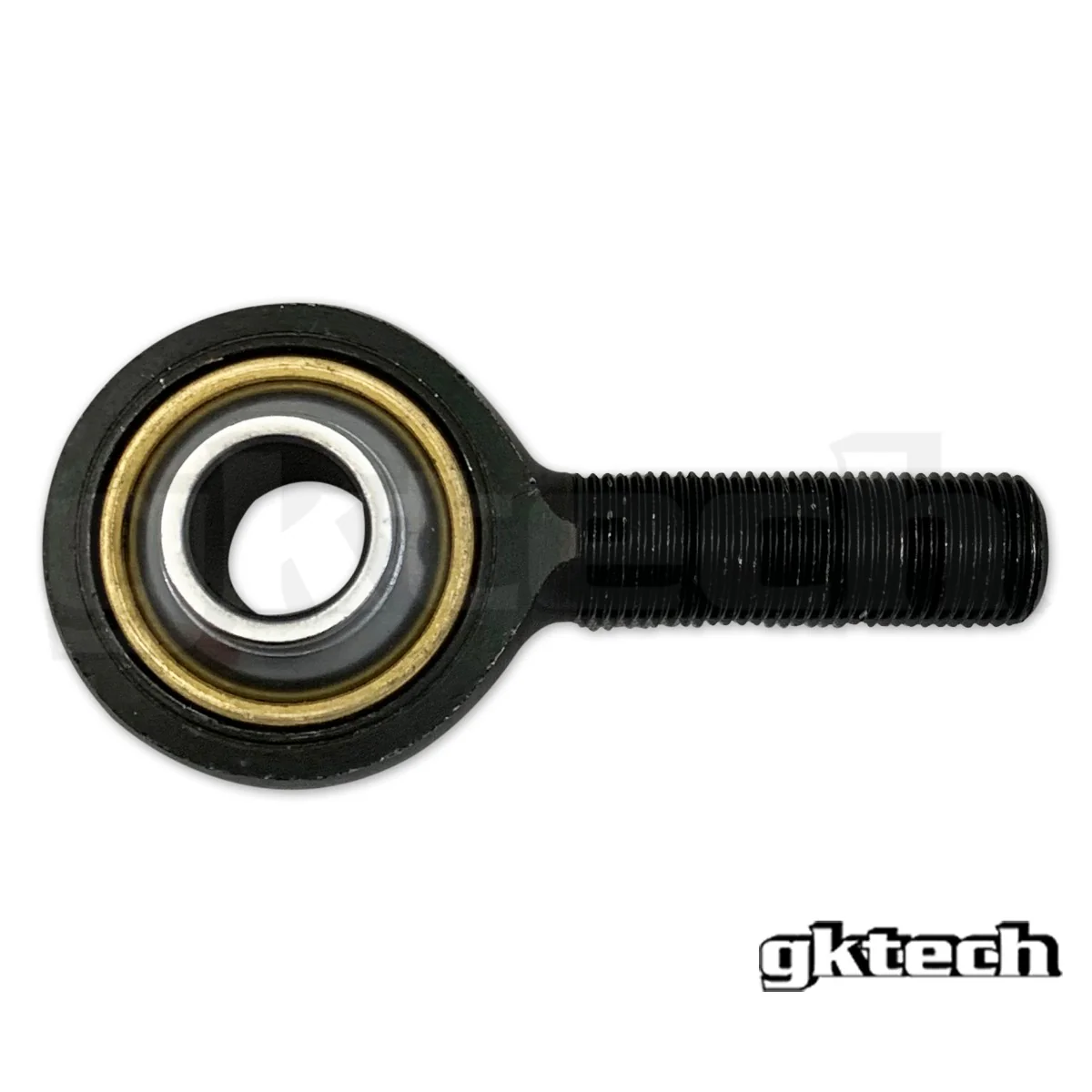

Replacement PCYML10TS tie rod end bearing—
$18.79
The Story
Replacement PCYML10TS tie rod end bearing Used in the following GKTECH products:
M12/M14 tie rod ends SKU;
M125-TROD
M145-TROD
Z33X-SSTR
Z34X-SSTR
Z33X-TROD
GTRX-TROD
GT86-SSTR
XE10-SSTR
Sold individually
PCYML10TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.6250 in | 15.8750 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 1.3750 in | 34.9250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 2.0000 in | 50.8000 mm |
| THREAD SIZE | THREAD SIZE |
| 5/8 - 18 UNF LH | 5/8 - 18 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 2.0000 in | 50.8000 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 64 degrees | 64 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Replacement PCYML10TS tie rod end bearing Used in the following GKTECH products:
M12/M14 tie rod ends SKU;
M125-TROD
M145-TROD
Z33X-SSTR
Z34X-SSTR
Z33X-TROD
GTRX-TROD
GT86-SSTR
XE10-SSTR
Sold individually
PCYML10TS
| IMPERIAL | METRIC |
|---|---|
| ROD END BALL BORE SIZE | ROD END BALL BORE SIZE |
| 0.6250 in | 15.8750 mm |
| ROD END BALL WIDTH | ROD END BALL WIDTH |
| 1.3750 in | 34.9250 mm |
| THREAD LENGTH | THREAD LENGTH |
| 2.0000 in | 50.8000 mm |
| THREAD SIZE | THREAD SIZE |
| 5/8 - 18 UNF LH | 5/8 - 18 UNF LH |
| ROD END HEAD DIAMETER | ROD END HEAD DIAMETER |
| 2.0000 in | 50.8000 mm |
| ROD END MISALIGNMENT ANGLE | ROD END MISALIGNMENT ANGLE |
| 64 degrees | 64 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) | ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs | 13,739 kg |
| ROD END MATERIAL | ROD END MATERIAL |
| Chromoly | Chromoly |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
