Hydraulic handbrake setup with remote lever

The GKTECH Hydraulic handbrake setup with remote lever allows for the fitment of a hydraulic handbrake lever in situations where a traditional hydro design cannot fit.
Whether it is because of the shape of the centre console, the parking brake, or the gear shifter, the remote hydro can be a solution for when a traditional style hydro isn't.

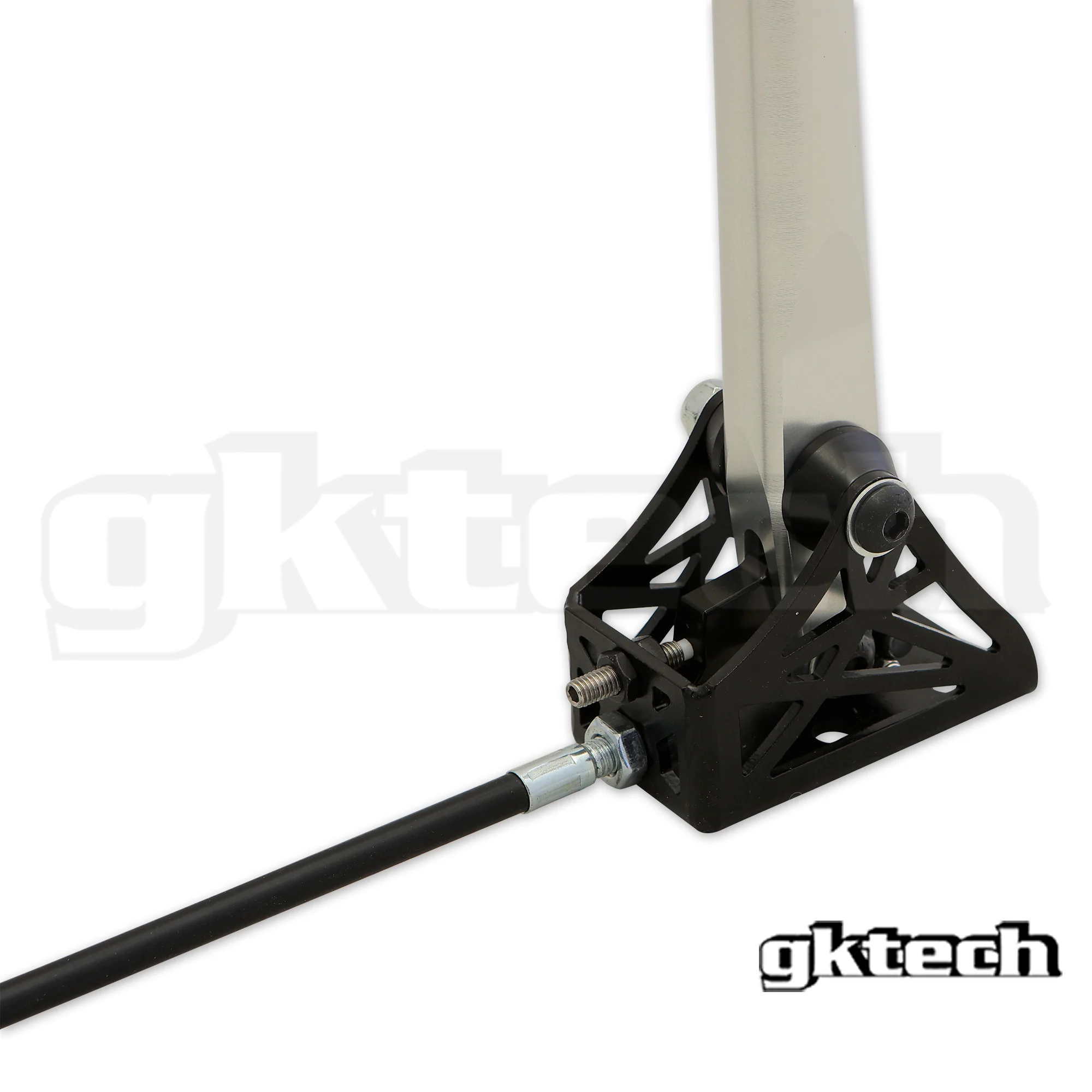

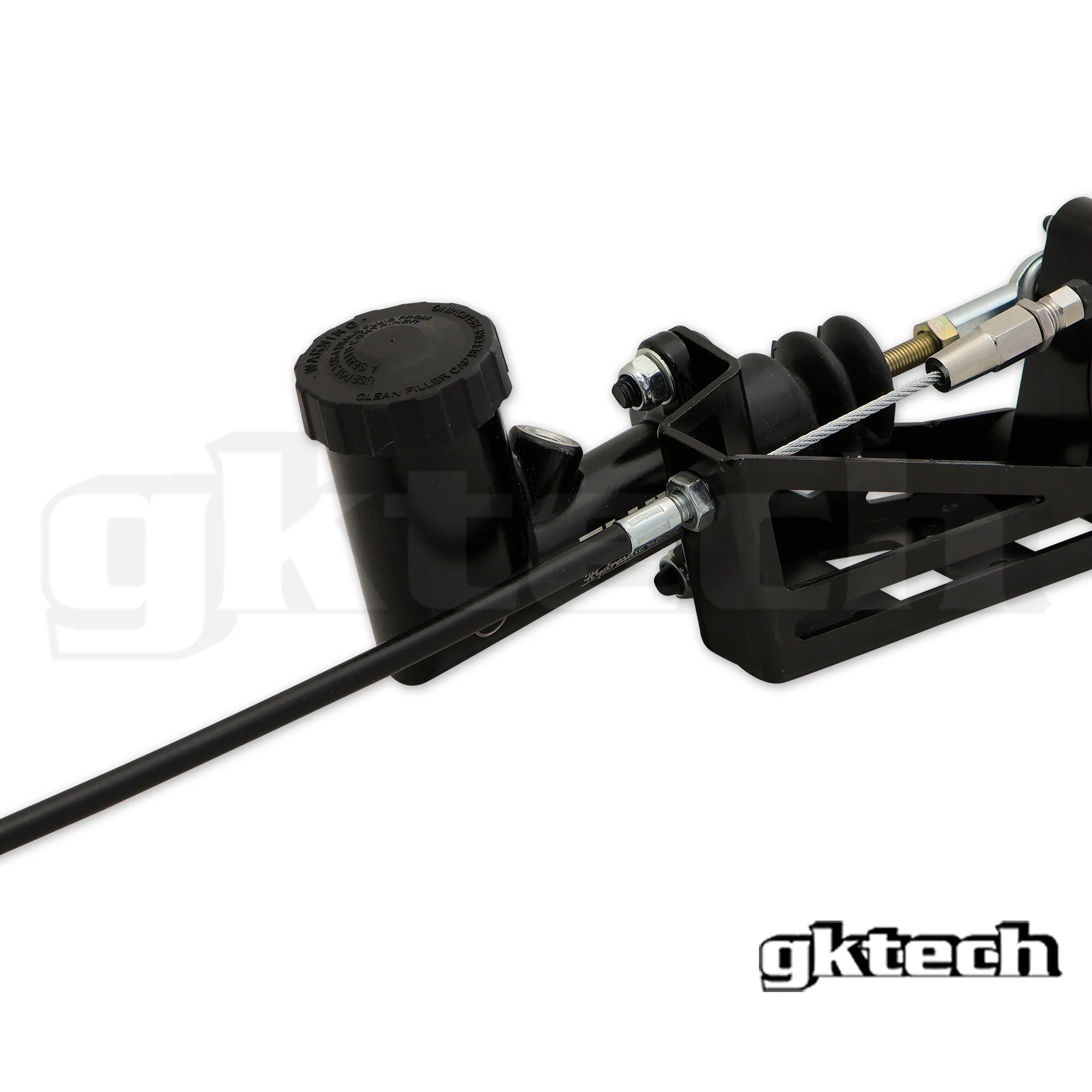

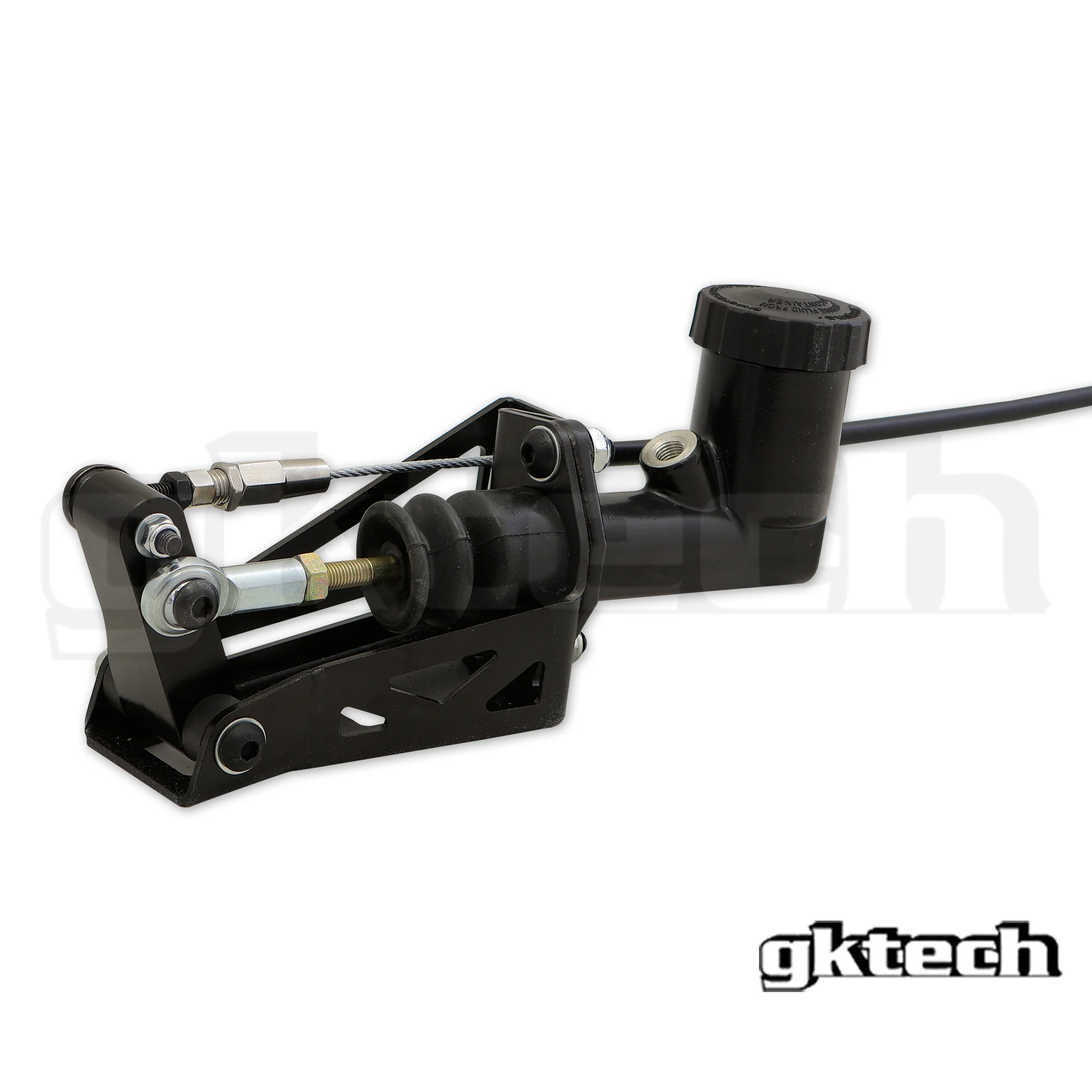

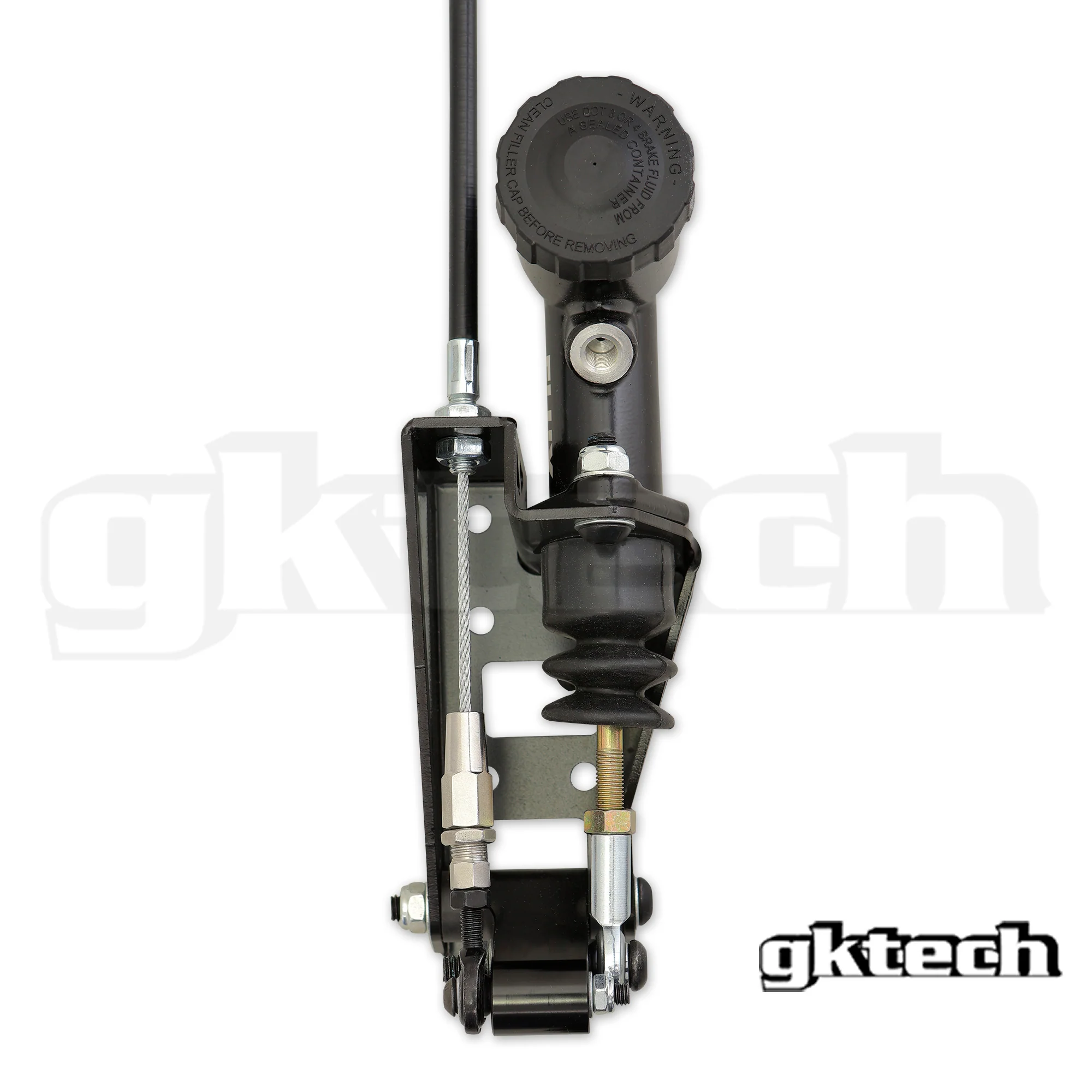

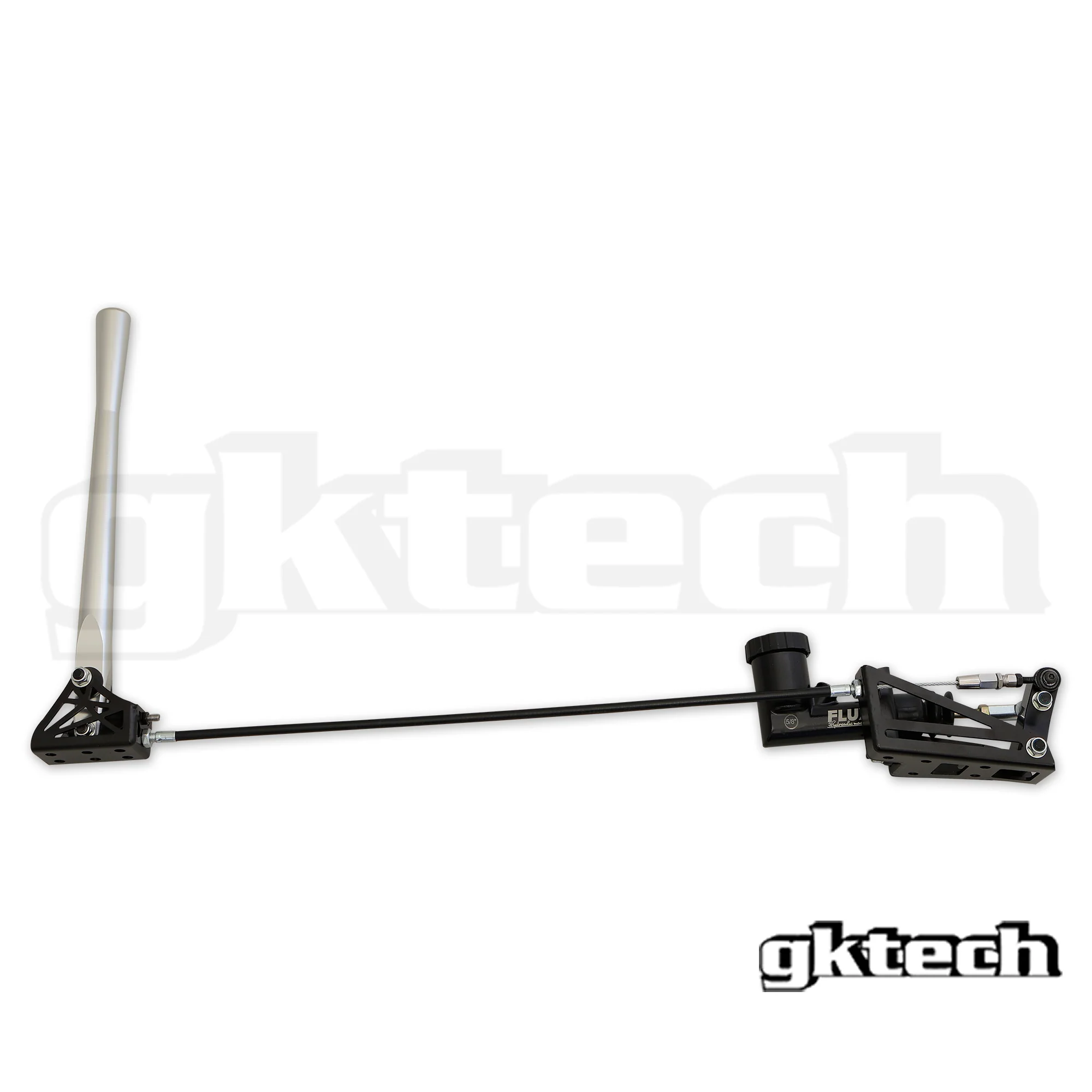

The remote hydro relocates the master cylinder to a secondary bracket connected by a sleeved cable. This secondary bracket is then located approximately 600mm behind the handle, out of the way.

By relocating the master cylinder this greatly reduces the size of the bracket at the handle end, allowing it to fit in more applications.

Cable length included is 555mm (this is the measurement between the handbrake cage and master cylinder bracket).

With our CNC machined aluminium handbrake handles the whole unit is lightweight although very strong after a significant amount of FEA to ensure loads were evenly distributed across the handbrake assembly.

Our handles are now available in silver, black, neo chrome, blue, pink, purple, gold, orange and red.

If you don't want to piece a kit together yourself, check our our hydraulic handbrake bundles here: https://au.gktech.com/products/hydraulic-handbrakes/combos

NOTE FOR IN-LINE MASTER CYLINDER OPTION: Can NOT be installed on cars with ABS still fitted however can be used in conjunction with our ABS delete kits.

NOTE: Our handles are designed SPECIFICALLY for our hydraulic handbrake assemblies
