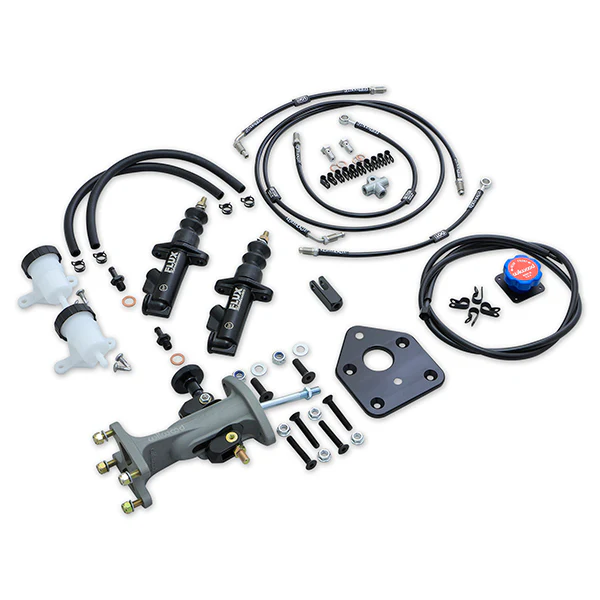

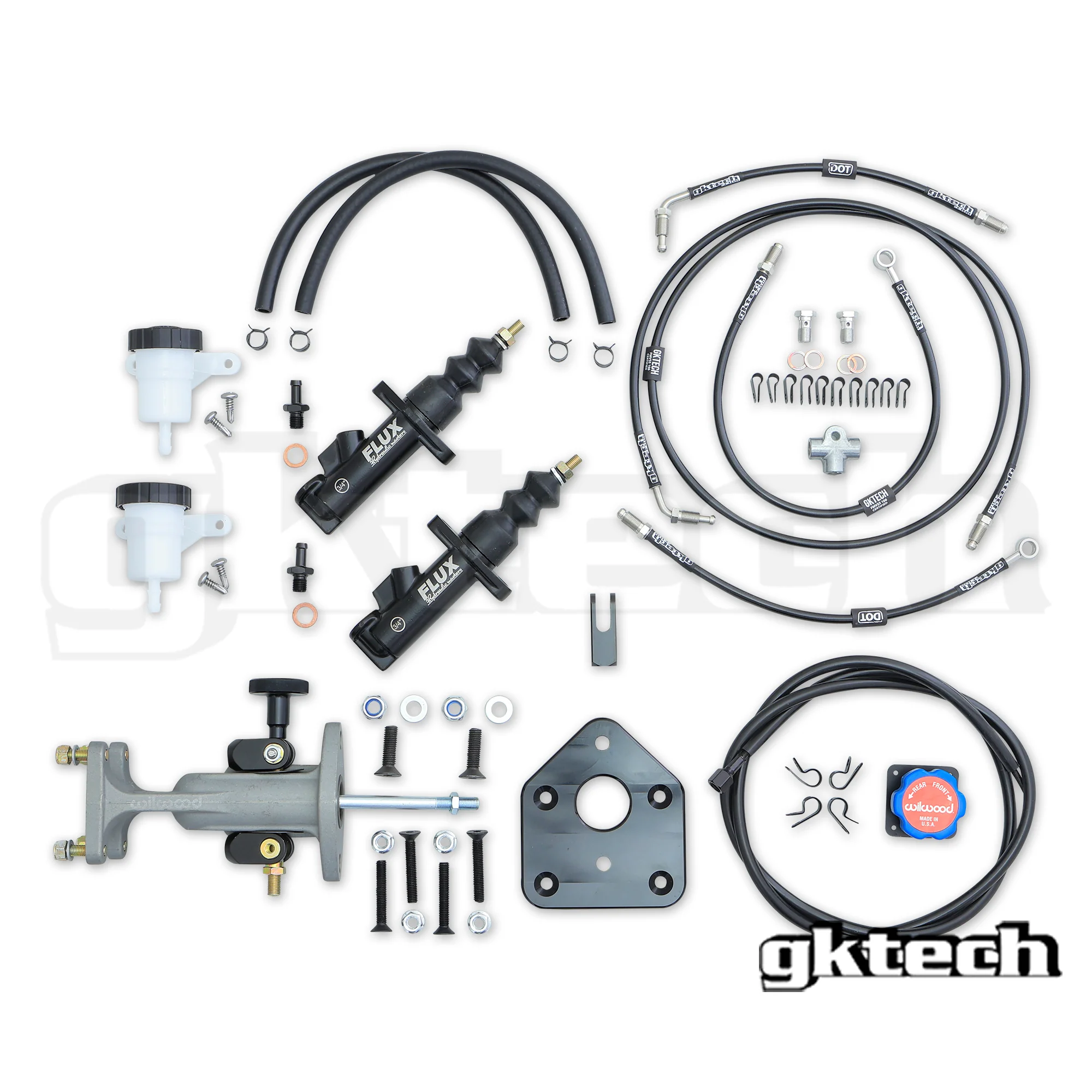

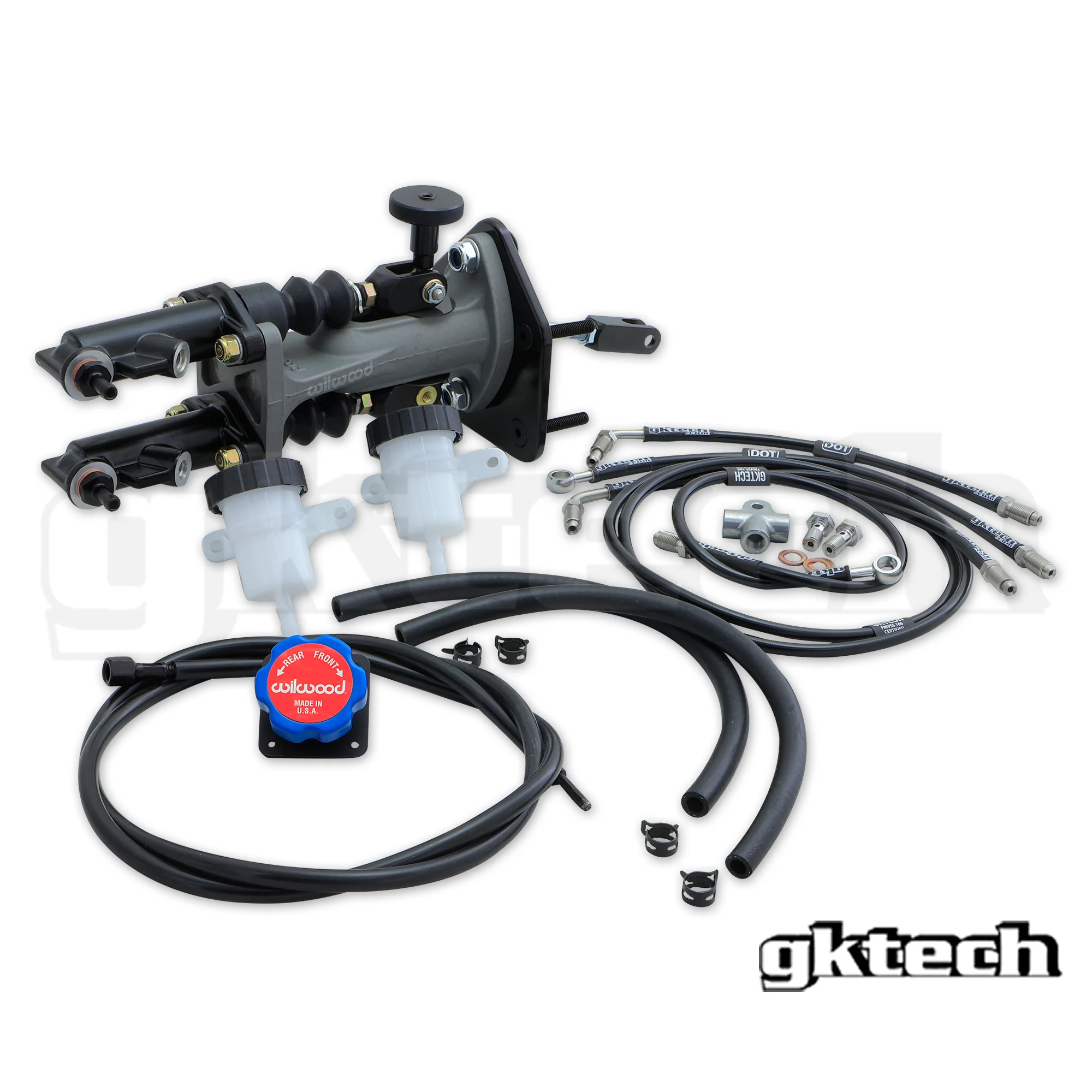

86 / GR86 / BRZ Bolt on dual brake master cylinder kit

Existing designs for adding bias control had some significant drawbacks. Pedal boxes can be very expensive and are prohibited by many race series (looking at you FD). While on the other hand, tandem master cylinders and proportioning valves often have limited adjustment, require many new lines and fittings and cannot usually be adjusted on the go. Many companies also neglect to adjust the pedal ratio when deleting the brake booster, leaving the driver with an unusably firm pedal.

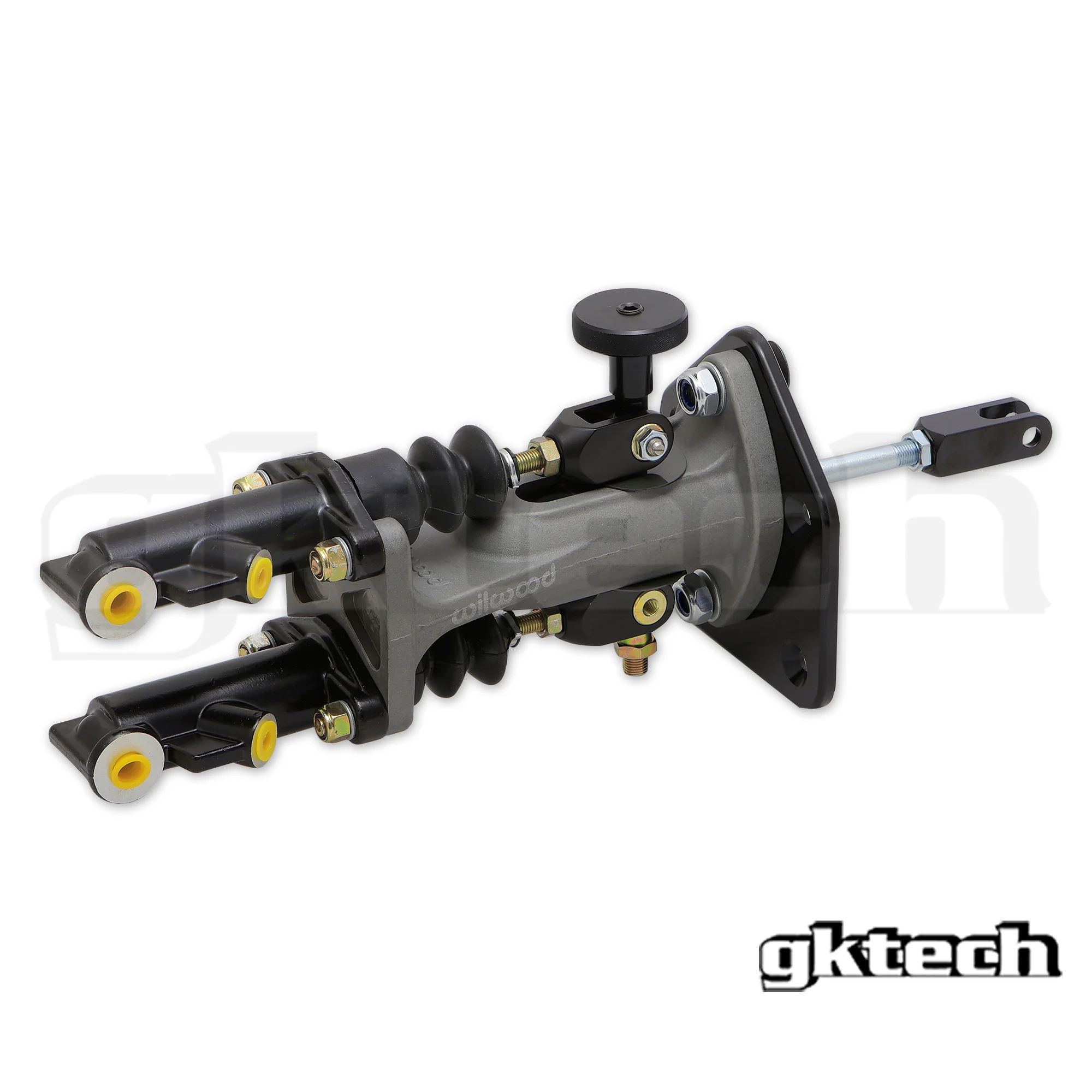

Using the GKTECH Dual master cylinder adapter bracket and clevis with wilwoods balance bar design alleviates all of these problems. The OEM pedal assembly is retained, the pedal ratio is adjusted, swappable front / rear master cylinders allow it to suit any brake setup and bias can be adjusted on the fly (using wilwoods balance bar adjuster cable).

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.

The FMVSS106 testing procedure that the lines have been tested against includes the following tests:

• 370lbs pull test
• 35 hour whip test
• 7000psi burst test
• -45degC to 146degC temperature tests
• 24 hour salt corrosion resistance test

Note: We recommend doing research on master cylinder options to suit YOUR specific setup, there are an infinite level of variables and therefor we cannot advise what is best to suit YOUR car.
Note 2: Each adapter is sold with a template to adjust the pedal ratio.
Note 3: ABS will need to be deleted
Note 4: Due to the position of the master cylinders a remote reservoir set up is required

Want to deep dive further into the dual master cylinder topic? Checkout our blog post by clicking HERE

NOTE: Short master cylinders are required when fitting to the new gen and or the ECU must be moved to suit.
